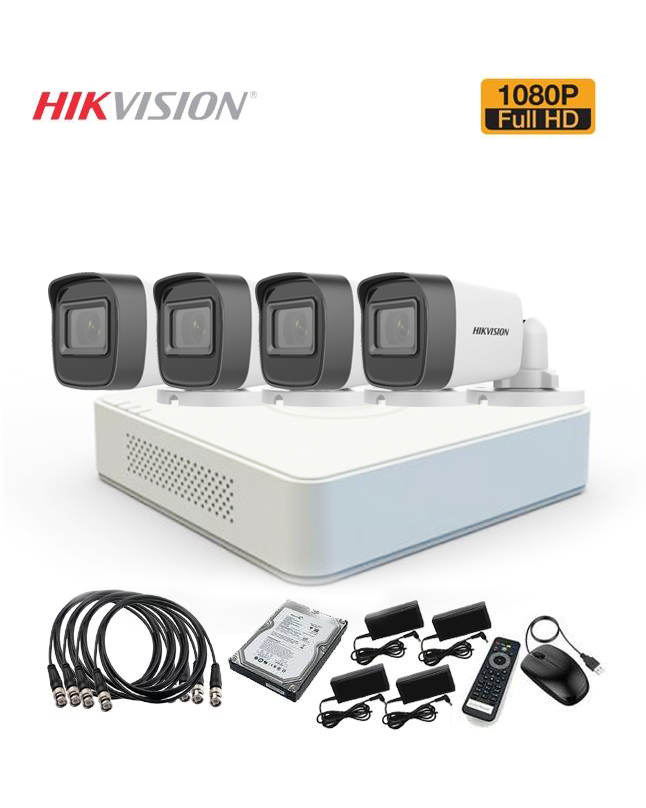

| Content | To find an ideal safety of one’s house, any other region, you should go with 4 FHD CCTV Camera Package HIKVISION. Hikvision features 4 full HD CCTV cameras & 2-MP – 1080p Water Proof – Day & Nigh Vision CCTV cameras at the best price . These cameras are Complete HD and also make it rather simple to understand and surveillance that the assumption. This complete camera package could be utilized for residential and for its industrial purposes. The item is hardy and durable. You are able to use this trustworthy product for quite a very long period as it’s available using 12 months of this warranty time period. |
- Camera
- ModelDS-2CE16D0T-EXIPF
- Product Name2MP Outdoor EXIR Fixed Mini Bullet Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Resolution1920 (H) × 1080 (V)
- Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
- Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm Fixed Lens
- Field Of View
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Lens MountM12
- Day & NightIR Cut Filter
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Image
- Image ModeSTD/HIGH-SAT
- AGCYes
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceAuto
- AE (Auto Exposure) ModeBLC;Global;DWDR
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionSharpness;Smart IR;Mirror;Brightness
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply12 VDC ± 25%
- ConsumptionMax. 3.3 W
- Protection LevelIP66
- MaterialPlastic
- IR RangeUp to 20 m
- CommunicationHIKVISION-C
- Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)
- Approx. 145 g (0.32 lb.)
| On the lookout for a fast and effortless solution with fantastic high quality graphics? Our professionally chosen bundle 4 Full HD IP Camera Package HIKVISION will deliver superb top excellent 4MP pictures. Simple plug and play setup solution. We’ll encourage you 100% throughout the setup and also the entire duration and application of the bodies. 4 Channel & 4 POE Network Video Recorder as much as 4Ch. Ip Address cameras enter 40 Mbps rotational speed input maximum and 80 Mbps rotational speed output maximum. Third Party system cameras affirmed upward to 8MP resolution recording HDMI and VGA separate output HDMI 4K output Inch SATA HDD port Around 8TB every single. |
| SPECIFICATIONS |
| MODEL |
CS-DP2C |
| INSTALLATION PARAMETERS |
| SUPPORTED HOLE DIAMETER |
16.5 to 50 mm (0.65 to 1.97 inch) |
| SUPPORTED DOOR DIAMETER |
35 to 105 mm (1.38 to 4.13 inch) |
| CAMERA PARAMETERS |
| SENSOR |
1/3″ Progressive Scan CMOS |
| LENS |
2.0 mm @ F2.2, visual angle (diagonal):155° |
| DAY/NIGHT SWITCH |
ICR infrared filter |
| IR DISTANCE |
Max. 5m |
| MAX. RESOLUTION |
1080p / 2MP |
| VIDEO FRAME RATE |
15fps |
| PIR DETECTION |
| ANGLE |
110° |
| DISTANCE |
Max. 6m (20 ft) |
| SENSITIVITY |
Adjustable |
| INTERFACE |
| STORAGE INTERFACE |
MicroSD card slot (max. 256 GB) |
| AUDIO INPUT |
Built-in high sensitivity microphone |
| AUDIO OUTPUT |
Built-in high-power speaker |
| BUTTONS |
Doorbell button, power button, Screen wake up button |
| NETWORK |
| FACE DETECTION |
Does not support |
| INTELLIGENCE ALARM |
PIR motion detection |
| PROTOCOL |
EZVIZ Cloud Proprietary Protocol |
| VIDEO INTERCOM |
Local and remote video intercom |
| GENERAL FUNCTION |
Cloud video encryption and image encryption |
| WIRELESS |
| WI-FI STANDARD |
IEEE802.11b, 802.11g, 802.11n |
| FREQUENCY RANGE |
2.4 GHz ~ 2.4835 GHz |
| CHANNEL BANDWIDTH |
Supports 20 MHz |
| SECURITY |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| TRANSMISSION RATE |
11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| GENERAL |
| SCREEN |
4.3-inch color screen |
| COLOR |
Silver |
| OPERATING CONDITIONS |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| POWER SUPPLY |
DC 5V (±10%) |
| POWER CONSUMPTION |
Max. 2.2W |
| DIMENSION |
Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch) |
| Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch) |
| WEIGHT |
302 g (10.65 oz) |
| IN THE BOX |
| IN THE BOX |
– DP2C Peephole Doorbell |
| – Panel |
| – Mounting Base |
| – Power Cable (1 m / 3.3 ft) |
| – Screws × 6 |
| – Quick Start Guide |
| CERTIFICATIONS |
| CERTIFICATIONS |
UL / FCC / CE / WEEE / REACH / RoHS |
|
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°
4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
- Lens MountM12
- FocusFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
- Illuminator
- Smart Supplement LightYes
- White Light RangeUp to 30 m
- Video
- Max. Resolution2560 × 1440
- Main Stream
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Hardware Reset-UF: Yes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
|
| MODEL PARAMETERS |
| MODEL |
CS-C6W-A0-3H4WF |
| CAMERA |
| IMAGE SENSOR |
1/2.7″ Progressive Scan CMOS |
| SHUTTER SPEED |
Self-adaptive shutter |
| LENS |
4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal) |
| PT ANGLE |
Pan: 340°, Tilt: 75° |
| MINIMUM ILLUMINATION |
0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| LENS MOUNT |
M12 |
| DAY & NIGHT |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
True-WDR |
| BLC |
Supports |
| NIGHT VISION |
10m |
| VIDEO & AUDIO |
| MAX. RESOLUTION |
2560 × 1440 |
| FRAME RATE |
Max: 25fps; Self-Adaptive during network transmission |
| VIDEO COMPRESSION |
H.265 / H.264 |
| VIDEO BIT RATE |
Ultra-HD; HD; Standard. Adaptive bit rate. |
| AUDIO BIT RATE |
Self-Adaptive |
| MAX. BITRATE |
4Mbps |
| STORAGE |
| LOCAL STORAGE |
MicroSD card slot (Max. 256G) |
| CLOUD STORAGE |
EZVIZ Cloud Storage |
| NETWORK |
| WI-FI STANDARD |
IEEE802.11b, 802.11g, 802.11n |
| FREQUENCY RANGE |
2.412 GHz ~ 2.472 GHz |
| CHANNEL BANDWIDTH |
Supports 20MHz |
| SECURITY |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| TRANSMISSION RATE |
11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| WI-FI PAIRING |
AP pairing |
| PROTOCOL |
EZVIZ cloud proprietary protocol |
| INTERFACE PROTOCOL |
EZVIZ cloud proprietary protocol |
| WIRED NETWORK |
RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| GENERAL |
| OPERATING CONDITIONS |
-10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
| POWER SUPPLY |
DC 5V / 2A |
| POWER CONSUMPTION |
MAX. 8W |
| DIMENSIONS |
95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch) |
| PACKAGING DIMENSIONS |
126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch) |
| NET WEIGHT |
252 g (8.89 oz) |
| WEIGHT |
513 g (1.13 oz) |
| FUNCTION |
| SMART ALARM |
AI Person Detection |
| CUSTOMIZED ALERT AREA |
Supports |
| TWO-WAY TALK |
Supports |
| GENERAL FUNCTION |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| IN THE BOX: |
| IN THE BOX: |
C6W Camera ; 3-Meter Power Cable ; Power Adapter ; Drill Template ; Base ; Screw Kit ; Regulatory Information ; Quick Start Guide |
| CERTIFICATIONS: |
| CERTIFICATIONS: |
CE / WEEE / REACH / RoHS / FCC / UL |
|
