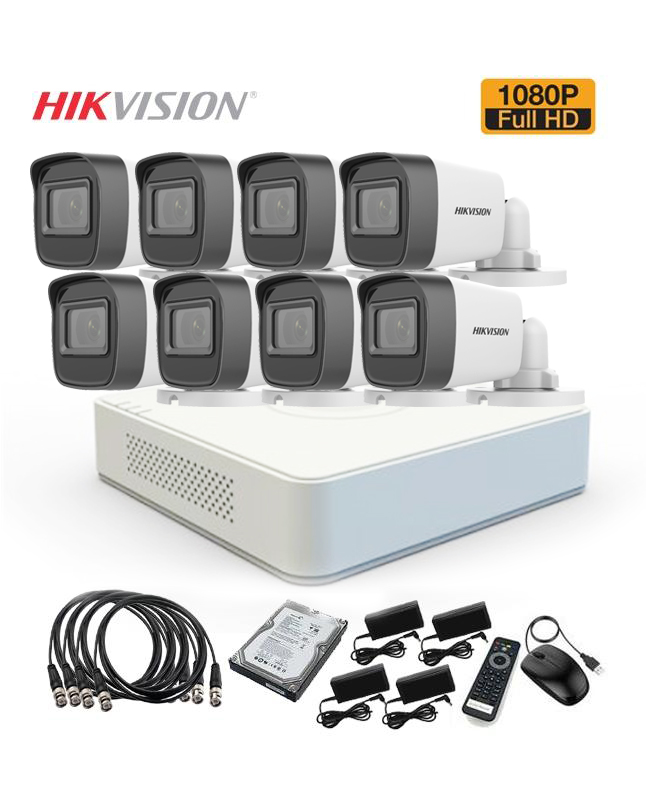

| Content | Full High-definition CCTV Kit out of HIKVision, the number 1 CCTV Manufacturer. This high-spec 8 FHD CCTV Camera Package HIKVISION includes all you want to guard your premises in very large quality using the most latest Turbo tech, forget about fuzzy pictures, only supersharp video which wont disappoint. Even the HIKVision recorders startoff with a 1TB drive and also you’ve got the choice of adding storage.
The HIKVision cameras possess an incredible 3040 Metre night-vision, no additional terrace camera may attain this at this competitive price. The great, easy-to-use program enables you to prepare the recorder, even view live picture anywhere, play back listed footage, all with only a couple clicks of the mouse. |
- Camera
- ModelDS-2CE16D0T-EXIPF
- Product Name2MP Outdoor EXIR Fixed Mini Bullet Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Resolution1920 (H) × 1080 (V)
- Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
- Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm Fixed Lens
- Field Of View
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Lens MountM12
- Day & NightIR Cut Filter
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Image
- Image ModeSTD/HIGH-SAT
- AGCYes
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceAuto
- AE (Auto Exposure) ModeBLC;Global;DWDR
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionSharpness;Smart IR;Mirror;Brightness
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply12 VDC ± 25%
- ConsumptionMax. 3.3 W
- Protection LevelIP66
- MaterialPlastic
- IR RangeUp to 20 m
- CommunicationHIKVISION-C
- Dimension138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)
- Approx. 145 g (0.32 lb.)
|
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Wide Dynamic Range120 dB
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°
4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
- Lens MountM12
- FocusFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
- Illuminator
- Smart Supplement LightYes
- White Light RangeUp to 30 m
- Video
- Max. Resolution2560 × 1440
- Main Stream
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Hardware Reset-UF: Yes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
| On the lookout for a fast and effortless solution with fantastic high quality graphics? Our professionally chosen bundle 4 Full HD IP Camera Package HIKVISION will deliver superb top excellent 4MP pictures. Simple plug and play setup solution. We’ll encourage you 100% throughout the setup and also the entire duration and application of the bodies. 4 Channel & 4 POE Network Video Recorder as much as 4Ch. Ip Address cameras enter 40 Mbps rotational speed input maximum and 80 Mbps rotational speed output maximum. Third Party system cameras affirmed upward to 8MP resolution recording HDMI and VGA separate output HDMI 4K output Inch SATA HDD port Around 8TB every single. | On the lookout for a fast and effortless solution with fantastic high quality graphics? Our professionally chosen bundle 4 Full HD IP Camera Package HIKVISION will deliver superb top excellent 4MP pictures. Simple plug and play setup solution. We’ll encourage you 100% throughout the setup and also the entire duration and application of the bodies. 4 Channel & 4 POE Network Video Recorder as much as 4Ch. Ip Address cameras enter 40 Mbps rotational speed input maximum and 80 Mbps rotational speed output maximum. Third Party system cameras affirmed upward to 8MP resolution recording HDMI and VGA separate output HDMI 4K output Inch SATA HDD port Around 8TB every single. |
- Camera
- Image Sensor1/3″ progressive scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal length, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Reset Key-UF: Yes
- Event
- Basic EventMotion detection, video tampering, exception
- Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
- General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- DimensionØ110 mm × 85.3 mm (Ø 4.3″ × 3.4″)
- Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- Approx. 320 g (0.7 lb.)
- With Package WeightApprox. 556 g (1.2 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
|
